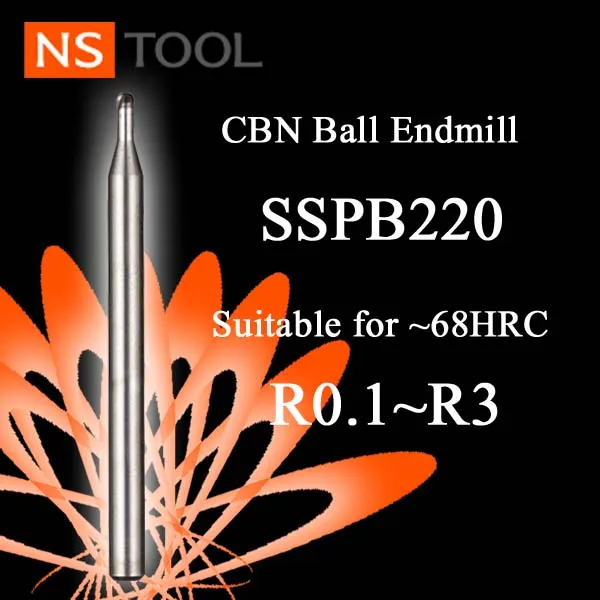

NS TOOL SSPB220 CBN Ball endmill for hard material

FOB Reference Price:Get Latest Price
US $160-310 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Japan
Brand Name:
NS TOOL
Model Number:
MXH225
Material:
CBN
Diameter:
R0.1-R3
Type:
End Mill
Coating:
Notthing
Overall Length:
50-80
Flute:
2
Application:
Milling Machining
Suitable for:
Prehardened steels,Harden steels,carbon steels,Alloy steels,
Length of cut:
0.15-3.6
Neck taper angle:
15°
shank DIA.:
4-6
helix:
20°
SupplyAbility
SupplyAbility:
100 Piece/Pieces per Month
Packaging & Delivery
Port
Osaka,Kobe,Narita
Lead Time :
within 10 days




NS TOOL SSPB220 2 Flutes CBN Ball endmill for hard material and,presicion machining.

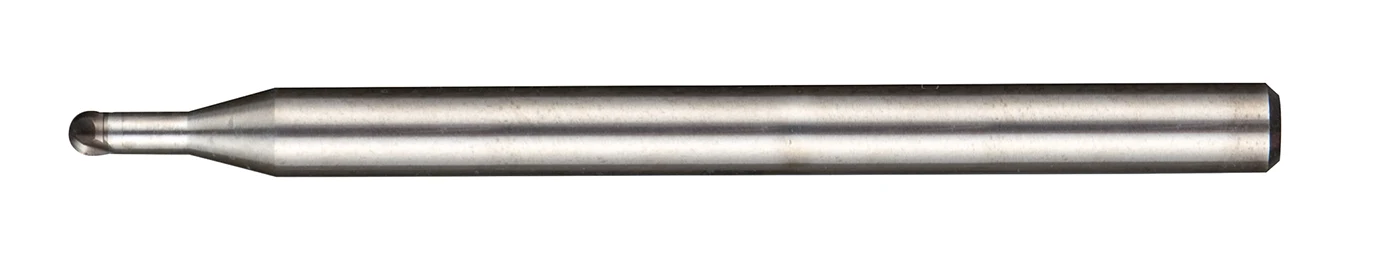

                          CBN Ball End Mill







sspb 2.jpg



Product Feature



 Adopted spiral ball shape to improve sharpness of cutting edge.


Adopted cutting edge shape to improve the chipping resistance of cutting edge.


When peripheral cutting edge makes contact with cutting surface, vibration occurs by an increase in cutting resistance and it affects tool life and cutting surface quality. The influence can be reduced by adoption of the strong back taper shape.


Enlarged standard tool size up to R3 to extend application range.



Suitable material



CarbonsteelsAlloy Steels, Tool SteelsPrehardened SteelsHardened SteelsStainless SteelsTitanium alloyAluminumCopperPlastic
    suitablesuitable    more suitable~55HRC

55HRC~


more suitablemore suitable





Product Detail









































































SSPB220 Line up



SSPB line up1.jpg











Recommended Milling Conditions








Cutting Data



SSPB Cutting data3.jpg





NS tool.jpg















TOSAMACHINE_HH-AJ-_08






TOSAMACHINE_HH-AJ-_15
