1-6mm NS TOOL MFD Carbide flat drill for precision machining

FOB Reference Price:Get Latest Price
US $34-50 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Japan
Brand Name:
NS TOOL
Model Number:
MFD
Material:
Carbide
Diameter:
1-6mm
Type:
Drill
Coating:
MUGEN-COATING
Overall Length:
55-60
Flute:
2
Application:
Drilling Machining
Suitable for:
stainless steel,carbon steel,tool steel,aluminum
Flute Length:
2-12
Neck taper angle:
shank DIA.:
4-6
L/D:
2
helix:
30°
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Port
Osaka,Kobe,Narita
Lead Time :
within 10 days

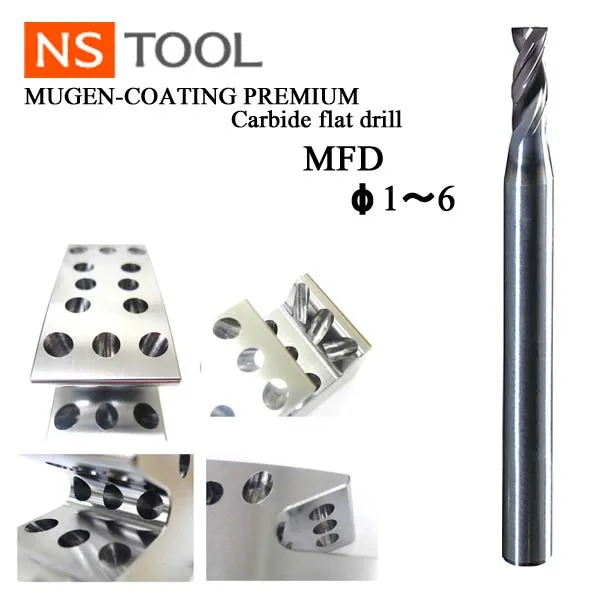

NS TOOL MFD Carbide flat drill for precision machining.









MUGEN-COATING

                           Flat bottom carbide drill







mfd 1.jpg





Product feature



Stable drilling is realized in various scenes such as inclined surface and curved surface!



High efficient counter boring.



Possible to reduce rear burr.



Suitable material



CarbonsteelsAlloy Steels, Tool SteelsPrehardened SteelsHardened SteelsStainless SteelsTitanium alloyAluminumCopperPlastic
more suitablemore suitable    suitable~55HRC

55HRC~

more suitable   suitablemore suitablemore suitablesuitable






Product Detail

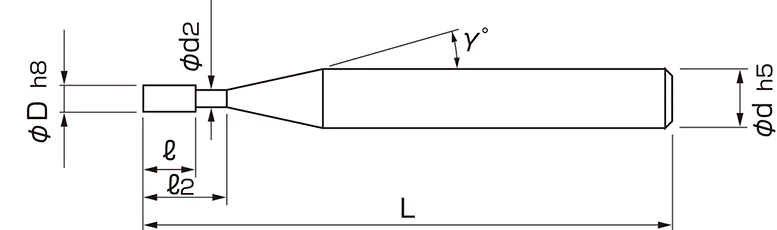

MHX225 Line up



MFD line up.jpg



Recommended Milling Conditions



Work
Material

Carbon Steels
S50C

Alloy Steels
SCM440

Stainless Steels
SUS304

Aluminum Alloy
A5052

Aluminum Alloy Die Casting
ADC

Cutting Speed
60~75m/min55~70m/min20~30m/min60~145m/min60~125m/min

Dia.

Spindle Speed

Feed

Feed per
Revolution

Spindle Speed

Feed

Feed per
Revolution

Spindle Speed

Feed

Feed per
Revolution

Spindle Speed

Feed

Feed per
Revolution

Spindle Speed

Feed

Feed per
Revolution
min-1mm/minmm/revmin-1mm/minmm/revmin-1mm/minmm/revmin-1mm/minmm/revmin-1mm/minmm/rev
119,0002500.01318,0001800.016,500350.00520,0003600.01820,0003000.015
210,5003700.03510,0002000.023,600350.0120,0007200.03620,0006000.03
38,0004300.0546,8003000.0442,500400.01615,0001,0000.06713,0007600.058
46,0004300.0725,2003200.0622,400600.02511,0001,0000.09110,0007600.076
54,8004300.094,2003200.0761,900600.0329,0001,0000.1118,0007600.095
64,0004300.1083,6003200.0891,600800.057,5001,0000.1336,6007600.115
